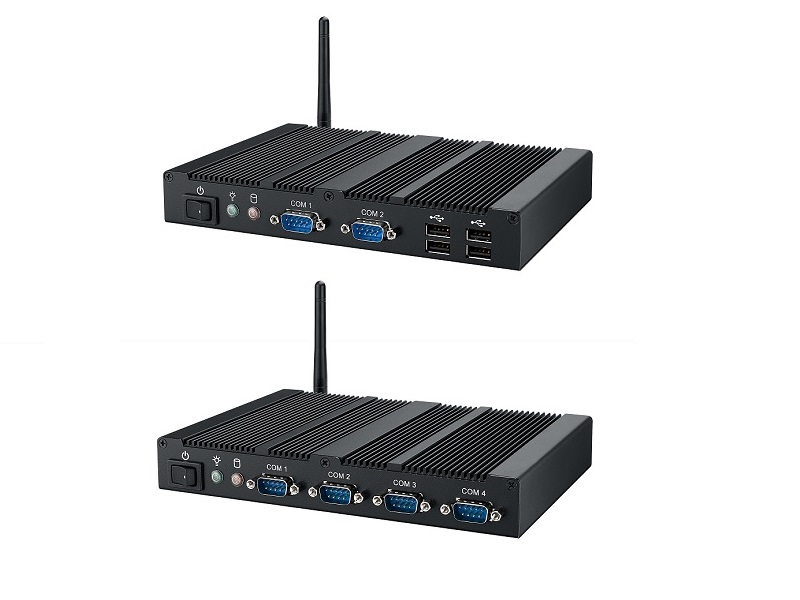

fanlessboxpc AES-1210M-C2/C4 Intel Baytrail

AES-1210M-C2/C4 Intel Baytrail

Fanless Box PC w/Intel BayTrail Celeron N2930 Quad-Core 1.83GHz CPU

VGA/HDMI, 2LAN, 2USB3, 6-2USB2, 2-4COM, Wide 9-36V DC-IN

AES-1210M-C2: 2COM, 2USB3, 6USB2

AES-1210M-C4: 4COM, 2USB3, 2USB2

Certification CE/FCC Class B


fanlessboxpc AES-1210M-C2/C4 Intel Baytrail datasheet

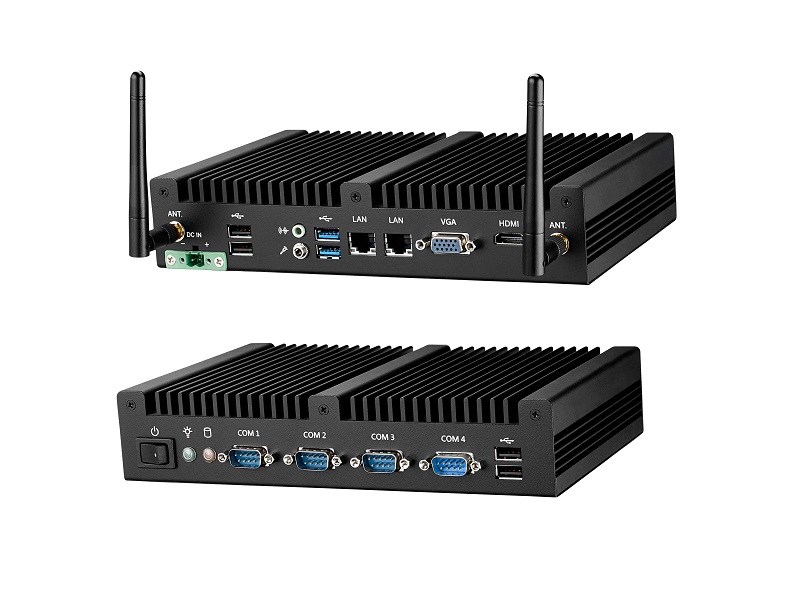

fanlessboxpc AES-2210D-C4 Intel Baytrail

AES-2210D-C4 Intel Baytrail

Fanless Box PC w/Intel BayTrail Celeron NJ1900 Quad-Core 2.0GHz CPU

VGA/HDMI, 2LAN, 2USB3, 4USB2, 4COM, Wide 9-36V DC-IN

AES-2210D-C4: 4COM, 2USB3, 4USB2

0°C ~ 50°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AES-2210D-C4 Intel Baytrail datasheet

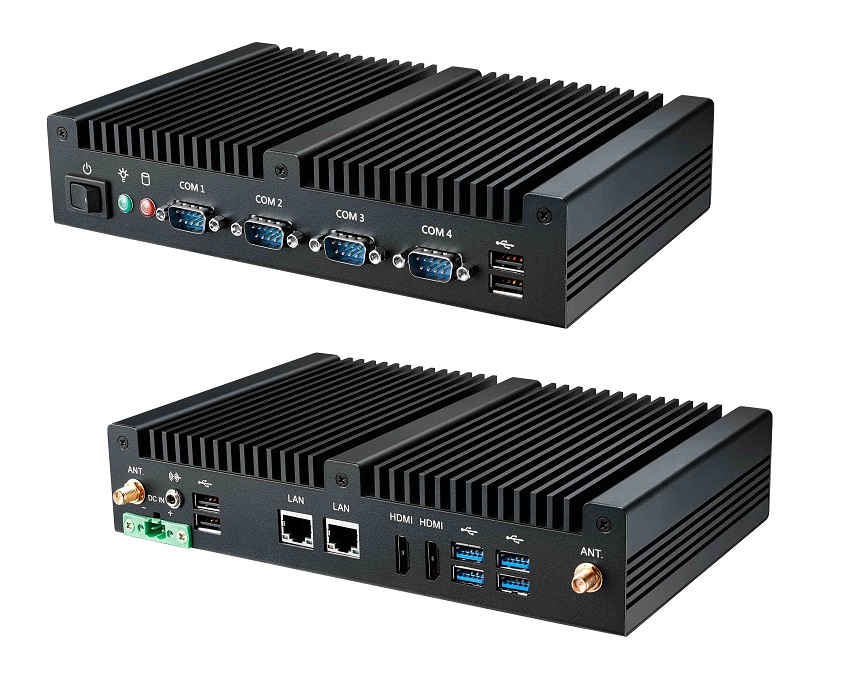

fanlessboxpc AES-2310-C4 Intel Haswell ULT

AES-2310-C4 Intel Haswell ULT

Embedded Fanless Box PC

Intel Haswell ULT Core i7/i5/i3 CPU

SO-DIMM, 1x Channel DDR3L 1333/1600MHz, up to 8GB system memory

2HDMI, 2LAN, 4USB3, 4USB2, 4COM, Wide 9-36V DC-IN

AES-2310P-C4: Core i7-4650U, 2LAN, 4COM, 4USB3, 4USB2

AES-2310M-C4: Core i5-4300U, 2LAN, 4COM, 4USB3, 4USB2

AES-2310V-C4: Core i3-4010U, 2LAN, 4COM, 4USB3, 4USB2

0°C ~ 50°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AES-2310-C4 Intel Haswell ULT datasheet

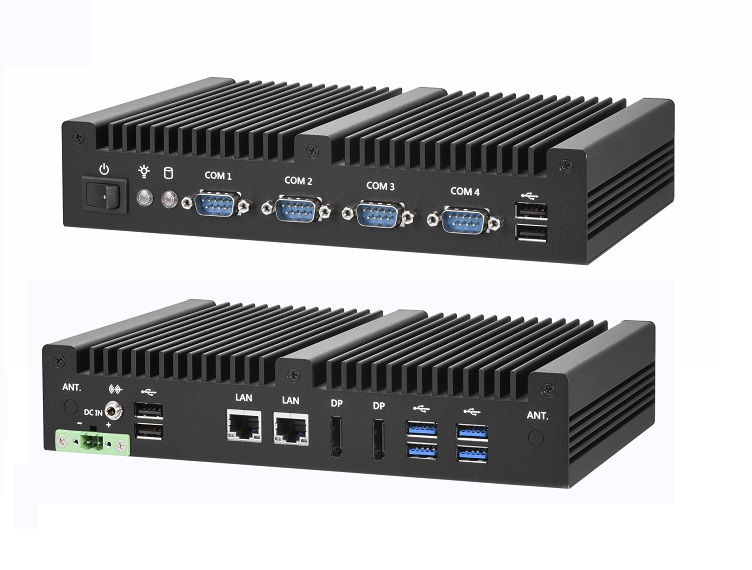

fanlessboxpc AES-2330-C4 Intel Skylake-U

AES-2330-C4 Intel Skylake-U

Fanless Box PC with Intel Skylake-U Core i7/i5/i3 CPU

Dual SO-DIMM, 2x Channel DDR4 2133MHz, up to 32GB system memory

2DP, 2LAN, 4USB3, 4USB2, 4COM, Wide 12-36V DC-IN

AES-2330P: i7-6600U, 2LAN, 4COM, 4USB3, 4USB2, 2xMini-PCIe F-size

AES-2330M: i5-6300U, 2LAN, 4COM, 4USB3, 4USB2, 2xMini-PCIe F-size

AES-2330V: i3-6100U, 2LAN, 4COM, 4USB3, 4USB2, 2xMini-PCIe F-size

0°C ~ 50°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AES-2330-C4 Intel Skylake-U datasheet

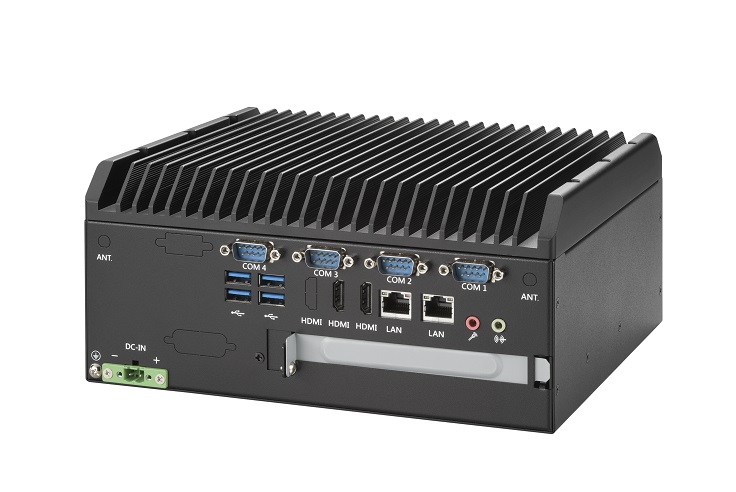

fanlessboxpc AIS-3091 Intel 7th/6th Skylake-S H110

AIS-3091 Intel 7th/6th Skylake-S H110

Fanless Box PC w/ Intel H110 Kblake-S, Skylake-S Core i7/i5/i3 CPU

Dual SO-DIMM, 2x Channel DDR4 2133MHz, up to 32GB system memory

2HDMI, 2LAN, 4USB3, 4USB2, 4COM, DC-IN 12V / 19-24V

AIS-3091-7T: i7-7700T CPU, 2LAN, 4COM, 4USB3/4USB2, PCIex4 Expand

AIS-3091-5E: i5-6500TE CPU,2LAN,4COM,4USB3/4USB2, PCIex4 Expand

AIS-3091-3E: i3-6100TE CPU,2LAN,4COM,4USB3/4USB2, PCIex4 Expand

0°C ~ 50°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AIS-3091 Intel 7th/6th Skylake-S H110 datasheet

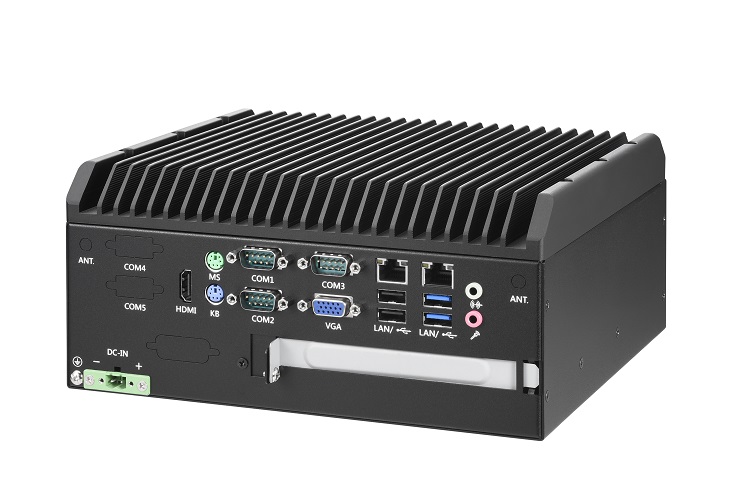

fanlessboxpc AIS-3050 / AIS-3050P Intel Baytrail

AIS-3050 / AIS-3050P Intel Baytrail

Fanless Box PC with Intel BayTrail Celeron J1900 CPU

Dual SO-DIMM, 2x Channel DDR3L 1333MHz, up to 8GB system memory

VGA/HDMI, 2LAN, 2USB3, 6USB2, 3-5COM, DC-IN 9V-19V

AIS-3050D: J1900 CPU, VGA/HDMI, 2LAN, 3COM, 2USB3, 6USB2,

PCIex1 Expansion (AIS-3050),

0°C ~ 60°C harsh operation environment

Certification CE/FCC Class B

AIS-3050P: PCIx1 Expansion by request with MOQ

J1900 CPU, VGA/HDMI, 2LAN, 3COM, 4USB3, 4USB2,


fanlessboxpc AIS-3050 / AIS-3050P Intel Baytrail datasheet

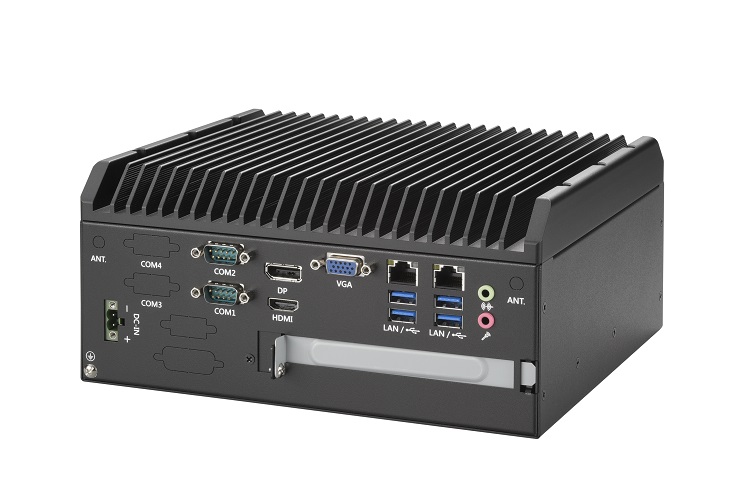

fanlessboxpc AIS-3295 Intel 7th/6th Skylake-S H110

AIS-3295 Intel 7th/6th Skylake-S H110

Fanless Box PC w/ Intel H110 Kblake-S, Skylake-S Core i7/i5/i3 CPU

Dual SO-DIMM, 2x Channel DDR4 2133MHz, up to 32GB system memory

VGA/HDMI/DP, 2LAN, 4USB3, 4USB2, 4COM, DC-IN 12-24V

AIS-3295-7T: i7-7700T CPU, 2LAN, 2COM, 4USB3/4USB2,PCIex16 Expand

AIS-3295-5E: i5-6500TE CPU,2LAN,2COM,4USB3,4USB2,PCIex16 Expand

AIS-3295-3E: i3-6100TE CPU,2LAN,2COM,4USB3,4USB2,PCIex16 Expand

0°C ~ 50°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AIS-3295 Intel 7th/6th Skylake-S H110 datasheet

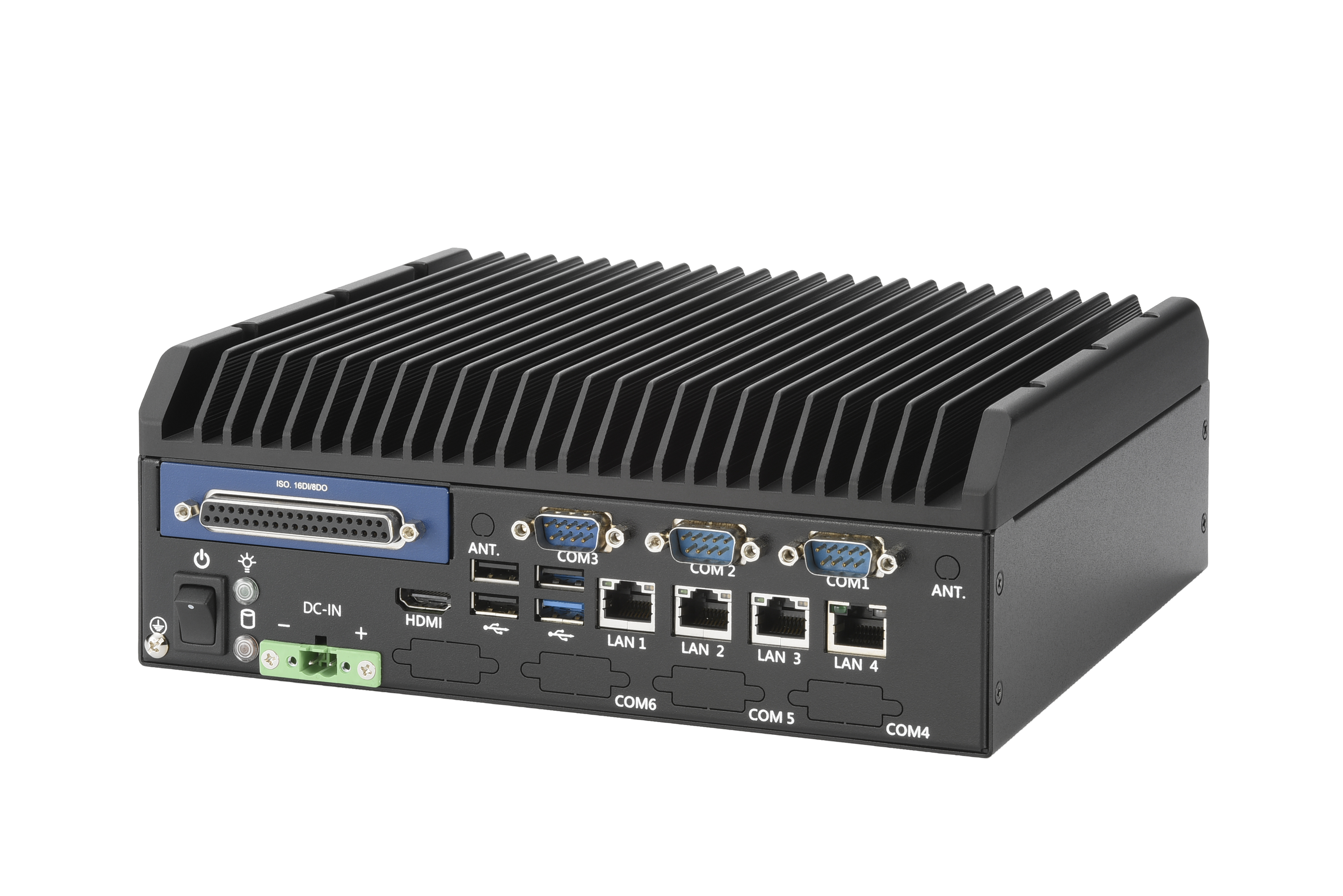

fanlessboxpc AIS-2N00

AIS-2N00

Mini-ITX Fanless Box PC with Intel BayTrail Celeron J1900 CPU

Dual SO-DIMM, 2x Channel DDR3L 1333MHz, up to 8GB system memory

Supports 4x LAN, HDMI, 6COM, USB3/USB2

Optional expansion features by Advantech iDoor modules

PCM-27D24DI: 24-Channel isolated Digital I/O, 16DI/8DO

PCM-26R2XX: 2-Port Hilscher netX100 FieldBus mPCIe, EtherCAT, EtherNet/IP, Sercos III, PROFINET, POWERLINK

For more POE, by EMPL-G2P1-C2 to offer dual isolated GbE LAN ports, up to 15.4W at 48V per PoE port

DC-IN 12V




fanlessboxpc AIS-2N00 datasheet
fanlessboxpc AIS-2056 Intel Apollo Lake

AIS-2056 Intel Apollo Lake

Mini-ITX Fanless Box PC w/ Intel Apollo Lake, Braswell Processors

2 x 204-pin SO-DIMM, System Memory up to 16GB

VGA/HDMI, 2LAN, 3COM, 4USB3/4USB2

0°C ~ 60°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AIS-2056 Intel Apollo Lake datasheet

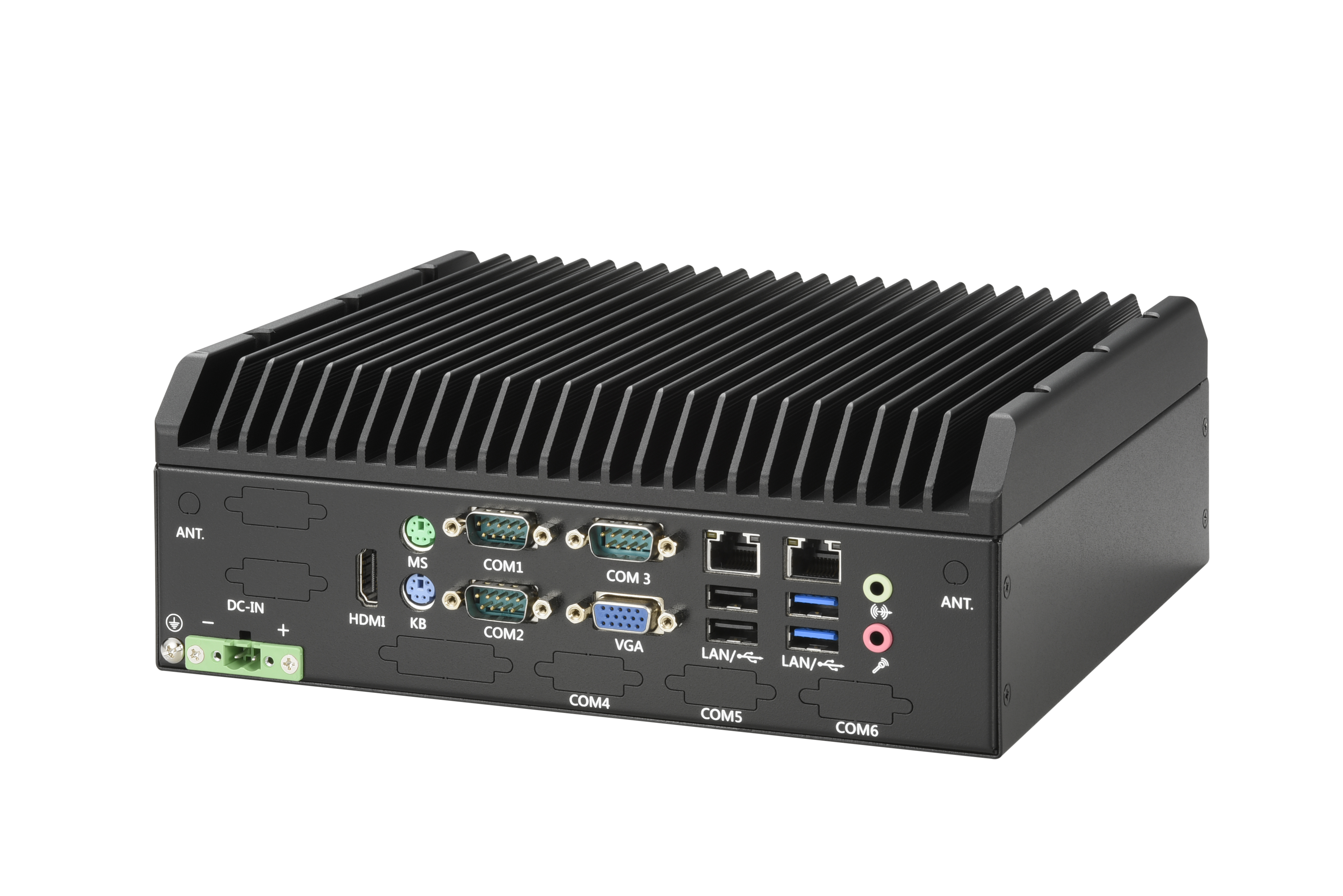

fanlessboxpc AIS-2050 Intel Baytrail

AIS-2050 Intel Baytrail

Fanless Box PC with Intel BayTrail Celeron J1900 CPU

Dual SO-DIMM, 2x Channel DDR3L 1333MHz, up to 8GB system memory

VGA/HDMI, 2LAN, 2USB3, 6USB2, 3-5COM, DC-IN 9V-19V

AIS-2050DC3: J1900 CPU, VGA/HDMI, 2LAN, 3COM, 2USB3, 6USB2

0°C ~ 60°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AIS-2050 Intel Baytrail datasheet

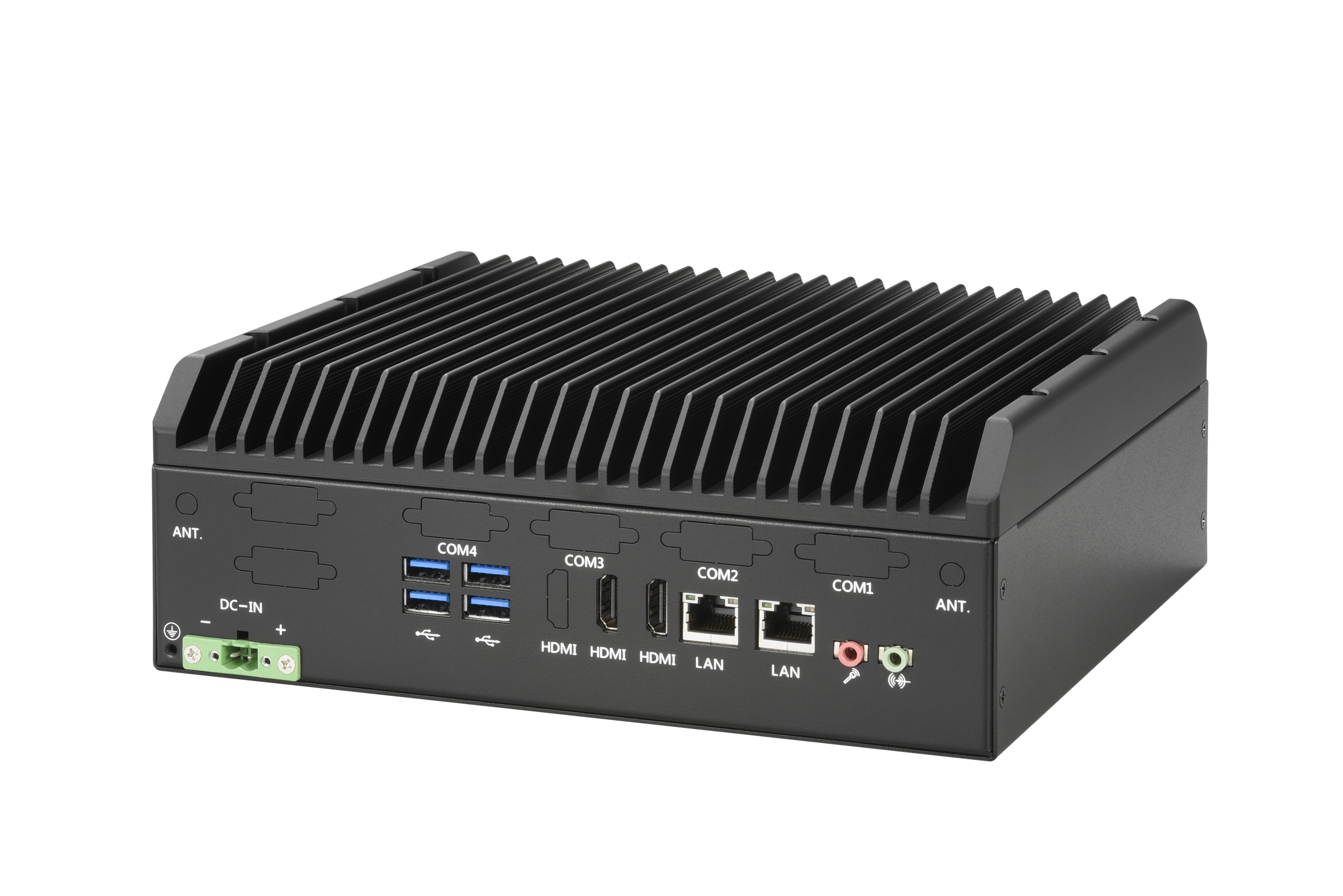

fanlessboxpc AIS-2091 Intel 7th/6th Skylake-S H110

AIS-2091 Intel 7th/6th Skylake-S H110

Fanless Box PC w/ Intel H110 Kblake-S, Skylake-S Core i7/i5/i3 CPU

Dual SO-DIMM, 2x Channel DDR4 2133MHz, up to 32GB system memory

2HDMI, 2LAN, 4USB3, 4USB2, 4COM, DC-IN 12V / 19-24V

AIS-2091-7T: i7-7700T CPU, Dual Intel GB LAN, 4COM, 4USB3, 4USB2

AIS-2091-5E: i5-6500TE CPU, Dual Intel GB LAN, 4COM, 4USB3, 4USB2

AIS-2091-3E: i3-6100TE CPU, Dual Intel GB LAN, 4COM, 4USB3, 4USB2

0°C ~ 50°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AIS-2091 Intel 7th/6th Skylake-S H110 datasheet

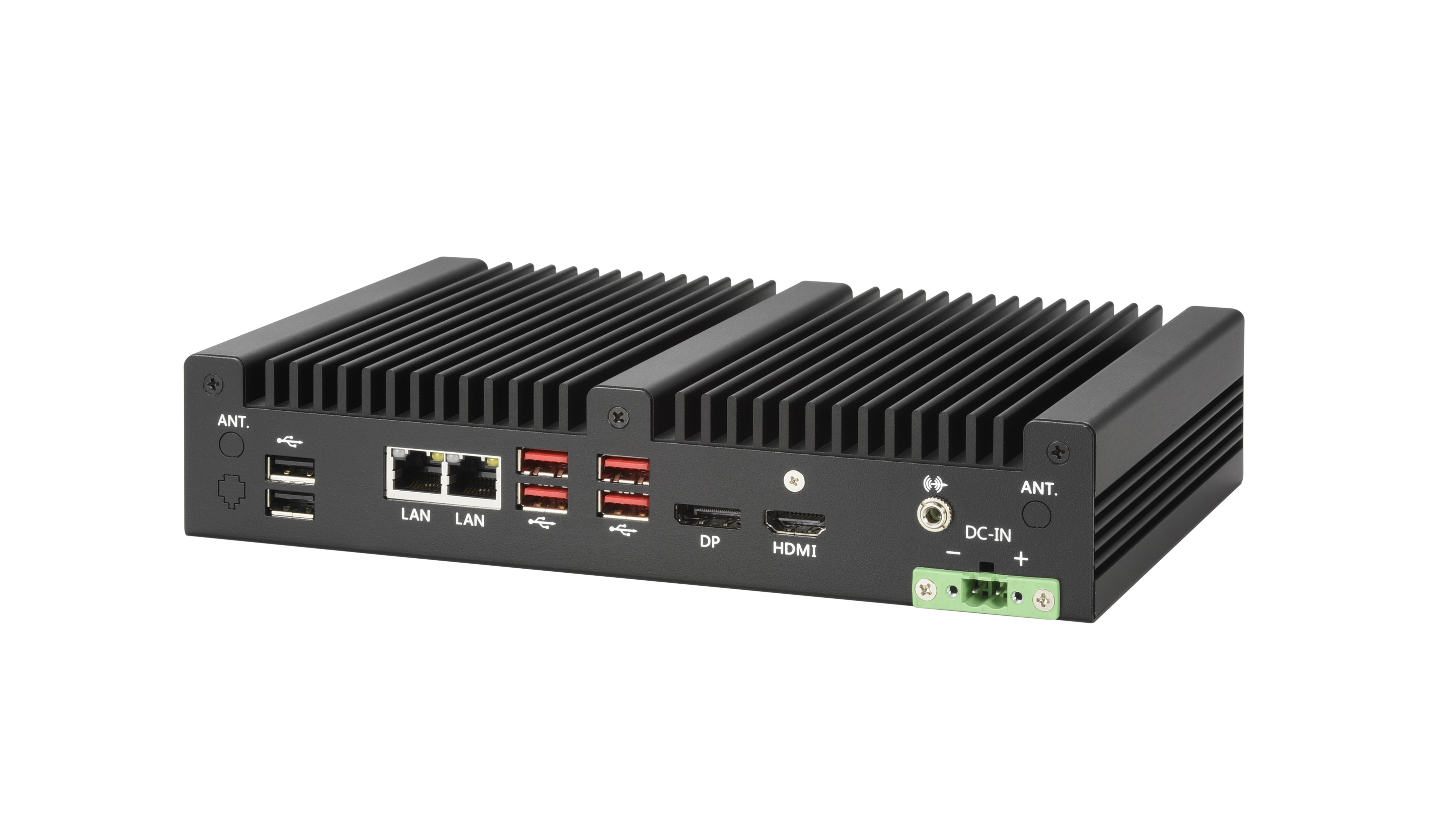

fanlessboxpc AES-2360 Intel 8th Whiskey Lake-U

AES-2360 Intel 8th Whiskey Lake-U

Fanless Box PC with Intel 8th Whiskey Lake-U Core i7/i5/i3/Celeron CPU

Dual SO-DIMM, Dual Channel DDR4 2400MHz/2133MHz, up to 64GB system memory

DP/HDMI, 2LAN, 4USB3.1(Gen2), 4USB2, 4COM, 12-24V DC-IN

M.2 B-Key: 2242/3042/2280 SATA3 .0/USB3.0/USB 2.0 with Nano SIM

M.2 E-Key: 2230 PCIe 3.0 x1, CNVi and USB 2.0 for Wireless

M.2 M-Key: 2242/2280 PCIe 3.0 x4, SATA 3.0, NVMe support

AES-2360H: i7-8665UE, DP/HDMI, 2LAN, 4USB3.1, 4USB2, 4COM

AES-2360E: i5-8365UE, DP/HDMI, 2LAN, 4USB3.1, 4USB2, 4COM

AES-2360L: i3-8145UE, DP/HDMI, 2LAN, 4USB3.1, 4USB2, 4COM

AES-2360C: Celeron 4305UE, DP/HDMI, 2LAN, 4USB3.1, 4USB2, 4COM

0°C ~ 50°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AES-2360 Intel 8th Whiskey Lake-U datasheet
fanlessboxpc AES-2345 Intel 8th Whiskey Lake-U

AES-2345 Intel 8th Whiskey Lake-U

Fanless Box PC with Intel 8th Whiskey Lake-U i3-8145UE CPU

Dual SO-DIMM, 2x Channel DDR4 2400MHz, up to 32GB system memory

2HDMI, 2LAN, 4USB3.1(Gen2), 2/6USB2, 4COM, Wide 9V-36V DC-IN

1 x 2.5" SATA3 HDD/SSD , 1 x M.2 M-Key PCIex4 / SATA3

1 x M.2 E-Key for for NGFF-2230 (WiFi/BT), 3G SIM slot

1 x Mini-PCIe , 4 x USB 2.0 on front bezel

AES-2345h: i7-8565U(Mobile), 2HDMI, 2LAN, 4USB3.1/6USB2, 4COM

AES-2345e: i5-8265U(Mobile), 2HDMI, 2LAN, 4USB3.1/6USB2, 4COM

AES-2345L: i3-8145UE, 2HDMI, 2LAN, 4USB3.1/6USB2, 4COM

0°C ~ 50°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AES-2345 Intel 8th Whiskey Lake-U datasheet
fanlessboxpc AIS-3294 two PCIex8 Intel 7th/6th Q170

AIS-3294 two PCIex8 Intel 7th/6th Q170

Mini-ITX Fanless Box PC two PCIex8 expansion slots,

Supports Intel Q170 Chipset, Intel Kblake-S, Skylake-S Core i7/i5/i3 CPU

Dual SO-DIMM, 2x Channel DDR4 2133MHz, up to 32GB system memory

VGA/HDMI/DP, 2LAN, 4USB3, 4USB2, 4COM, DC-IN 12V

AIS-3294-7T: i7-7700T CPU, two PCIex8, 2LAN, 2COM, 4USB3, 4USB2

AIS-3294-5E: i5-6500TE CPU, two PCIex8, 2LAN, 2COM, 4USB3, 4USB2

AIS-3294-3E: i3-6100TE CPU, two PCIex8, 2LAN, 2COM, 4USB3, 4USB2

0°C ~ 50°C harsh operation environment


fanlessboxpc AIS-3294 two PCIex8 Intel 7th/6th Q170 datasheet

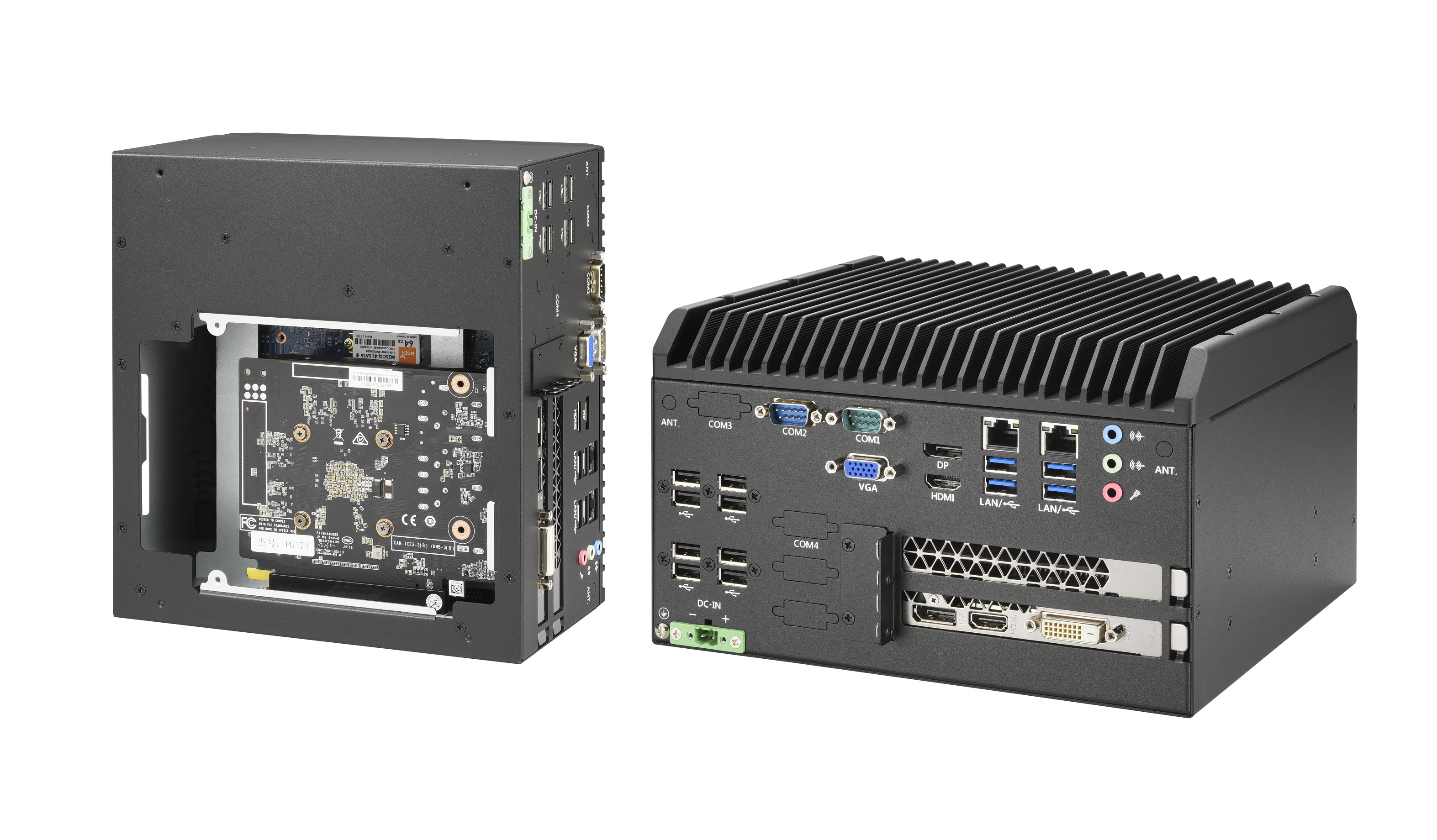

fanlessboxpc AIS-3031 Intel 9th/8th Coffee Lake-S H310

AIS-3031 Intel 9th/8th Coffee Lake-S H310

Mini-ITX Fanless Box PC w/Intel 9th/8th Core i7/i5/i3 CPU(Coffee Lake-S)

Support one PCIex16 expansion with 2-slot space

Dual SO-DIMM, 2-Channel DDR4 2666MHz, up to 32GB system memory

VGA/HDMI/DP, 2LAN, 4USB3, 4USB2, 4COM, DC-IN +12V/+19V/+24V

AIS-3031-7E-M0-00P0: i7-9700TE CPU, one PCIex16 w/2-slot, 2LAN, 1COM, 4USB3, 4USB2

AIS-3031-5E-M0-00P0: i5-9500TE CPU, one PCIex16 w/2-slot, 2LAN, 1COM, 4USB3, 4USB2

AIS-3031-3E-M0-00P0: i3-9100TE CPU, one PCIex16 w/2-slot, 2LAN, 1COM, 4USB3, 4USB2

0°C ~ 50°C harsh operation environment


fanlessboxpc AIS-3031 Intel 9th/8th Coffee Lake-S H310 datasheet

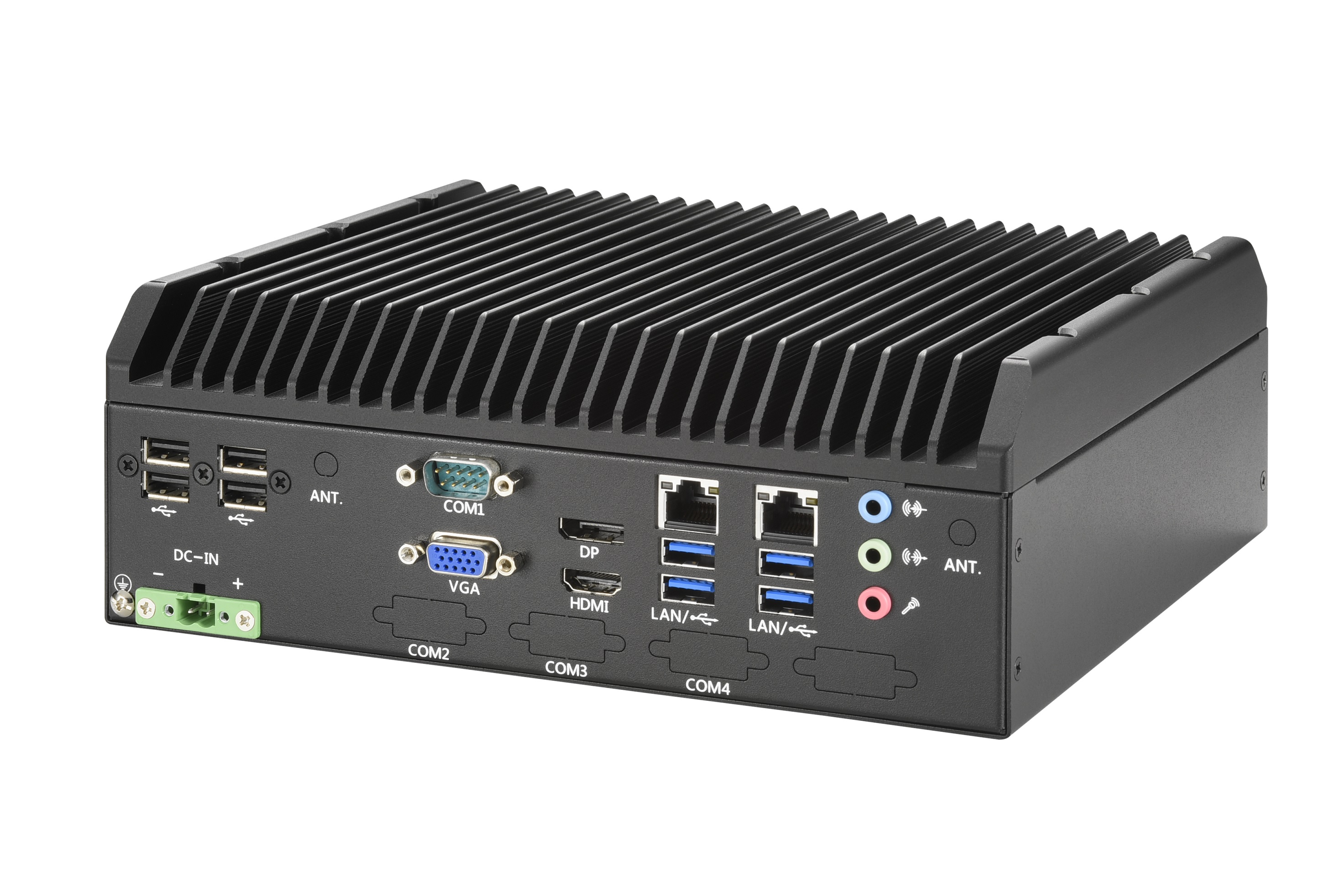

fanlessboxpc AIS-2031 Intel 9th/8th Coffee Lake-S H310

AIS-2031 Intel 9th/8th Coffee Lake-S H310

Mini-ITX Fanless Box PC w/ Intel 9th/8th Core i7/i5/i3 CPU ( Coffee Lake-S)

2x SO-DIMM, 2-Channel DDR4 2666MHz, up to 32GB system memory

VGA/HDMI/DP, 2LAN, 4USB3, 8USB2, 1COM, DC-IN +12V/ +19V/ +24V

AIS-2031-7E: i7-9700TE CPU, Dual Intel GB LAN, 1COM, 4USB3, 8USB2

AIS-2031-5E: i5-9500TE CPU, Dual Intel GB LAN, 1COM, 4USB3, 8USB2

AIS-2031-3E: i3-9100TE CPU, Dual Intel GB LAN, 1COM, 4USB3, 8USB2

0°C ~ 50°C harsh operation environment


fanlessboxpc AIS-2031 Intel 9th/8th Coffee Lake-S H310 datasheet
fanlessboxpc AIS-2225 Intel 10th Comet Lake-S H410

AIS-2225 Intel 10th Comet Lake-S H410

Mini-ITX Fanless Box PC w/ Intel 9th/8th Core i9/i7/i5/i3 CPU ( Comet Lake-S)

2x SO-DIMM, 2-Channel DDR4 2666MHz, up to 64GB system memory

VGA/HDMI/DP, 2LAN, 2USB3, 6/10USB2, 3COM, DC-IN +12V~ 24V

AIS-2225-9E: i9-10900TE, VGA/HDMI/DP, 2LAN, 3COM, 2USB3, 6USB2

AIS-2225-7E: i7-10700TE, VGA/HDMI/DP, 2LAN, 3COM, 2USB3, 6USB2

AIS-2225-5E: i5-10500TE, VGA/HDMI/DP, 2LAN, 3COM, 2USB3, 6USB2

AIS-2225-3E: i3-10100TE, VGA/HDMI/DP, 2LAN, 3COM, 2USB3, 6USB2

0°C ~ 50°C harsh operation environment

Certification CE/FCC Class B


fanlessboxpc AIS-2225 Intel 10th Comet Lake-S H410 datasheet

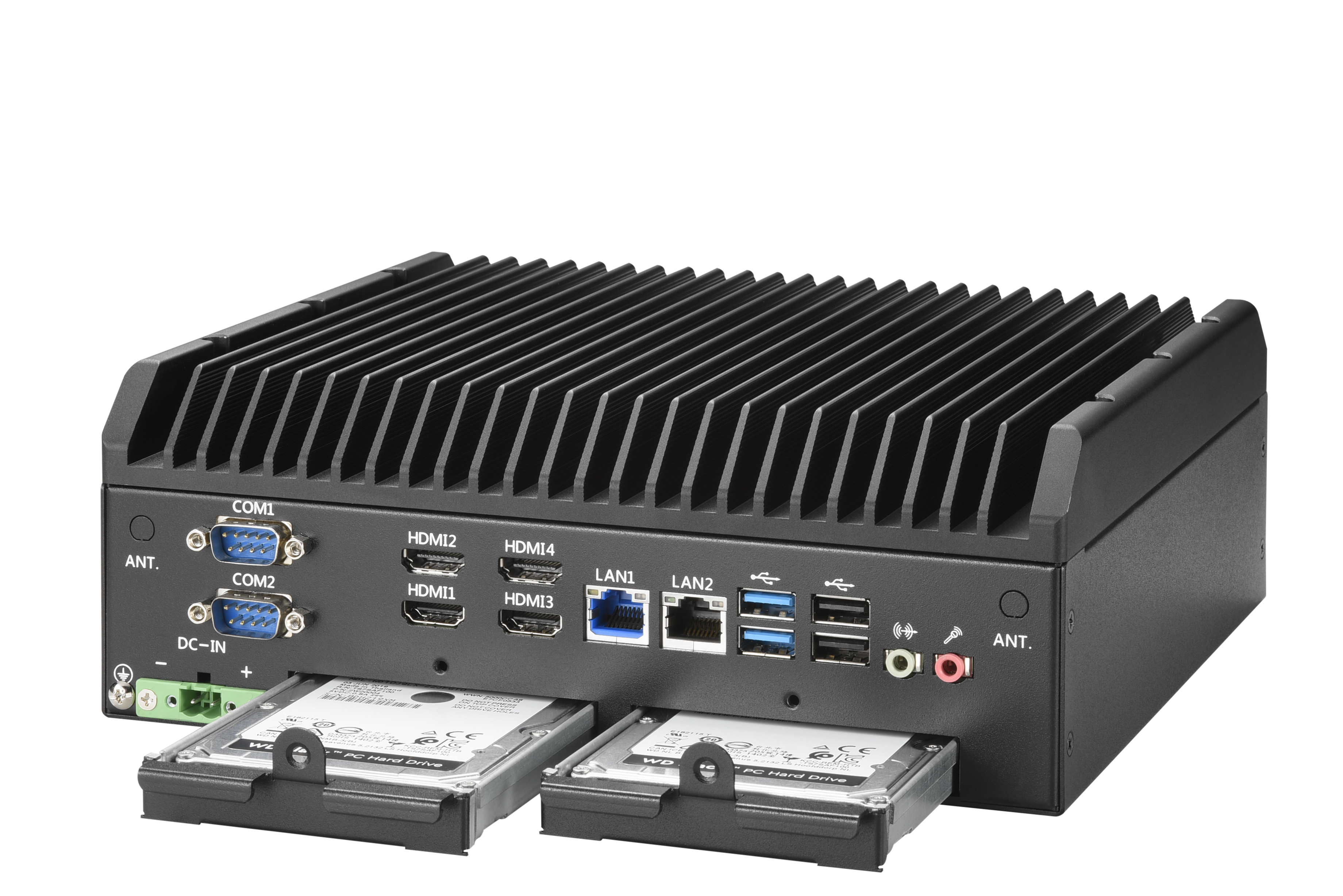

fanlessboxpc AIS-2024 Intel 11th Tiger Lake 4 HDMI Quad Display, RAID 0/1

AIS-2024 Intel 11th Tiger Lake 4 HDMI Quad Display, RAID 0/1

Mini-ITX Fanless Box PC w/ Intel 11th Core i7/i5/i3 CPU ( Tiger Lake-UP3)

Dual SO-DIMM, 2-Channel DDR4 3200MHz, up to 64GB system memory

Quad Display by 4x HDMI, 2 x Swappable RAID 0/1 2.5" SATA HDD/SSD

1x2.5G LAN, 1x 1G LAN, 2x USB3.2, 6x USB2.0, 2COM,

AIS-2024P: Intel i7-1185G7E, 4x HDMI, 2LAN, 2USB3/6USB2, 2COM

AIS-2024M: Intel i5-1145G7E, 4x HDMI, 2LAN, 2USB3/6USB2, 2COM

AIS-2024V: Intel i3-1115G4E, 4x HDMI, 2LAN, 2USB3/6USB2, 2COM

AIS-2024E: Intel Celeron 6305E, 4x HDMI, 2LAN, 2USB3/6USB2, 2COM

DC-IN +12V~ 28V

Certification CE/FCC Class A


fanlessboxpc AIS-2024 Intel 11th Tiger Lake 4 HDMI Quad Display, RAID 0/1 datasheet
fanlessboxpc AES-2362 Intel 11th Tiger Lake-UP3

AES-2362 Intel 11th Tiger Lake-UP3

Fanless Box PC with Intel 11th Tiger Lake-UP3 Core i7/i5/i3/Celeron CPU

Dual Channel DDR4 3200MHz, up to 64GB system memory, TPM 2.0

M.2 B-Key: 2242/3042/2280 SATA3/USB3.0/USB 2.0, PCIe 3.0x1 w/ Nano SIM

M.2 E-Key: 2230 PCIe 3.0 x1, CNVi and USB 2.0 for Wireless

M.2 M-Key: 2242/2280 PCIe 4.0 x4, PCIe Gen4 NVMe support

2HDMI, 2LAN(2.5GbE), 3/1USB3.2(Gen2), 4USB2, 4COM, 12-24V DC-IN

AES-2362H: i7-1185G7E, 2HDMI, 2LAN, 3/1USB3.2, 4USB2, 4COM

AES-2362E: i5-1145GRE, 2HDMI, 2LAN, 3/1USB3.2, 4USB2, 4COM

AES-2362L: i3-1115GRE, 2HDMI, 2LAN, 3/1USB3.2, 4USB2, 4COM

AES-2362C: Celeron 6305UE, 2HDMI, 2LAN, 3/1USB3.2, 4USB2, 4COM

-40°C ~ 60°C harsh operation environment


fanlessboxpc AES-2362 Intel 11th Tiger Lake-UP3 datasheet

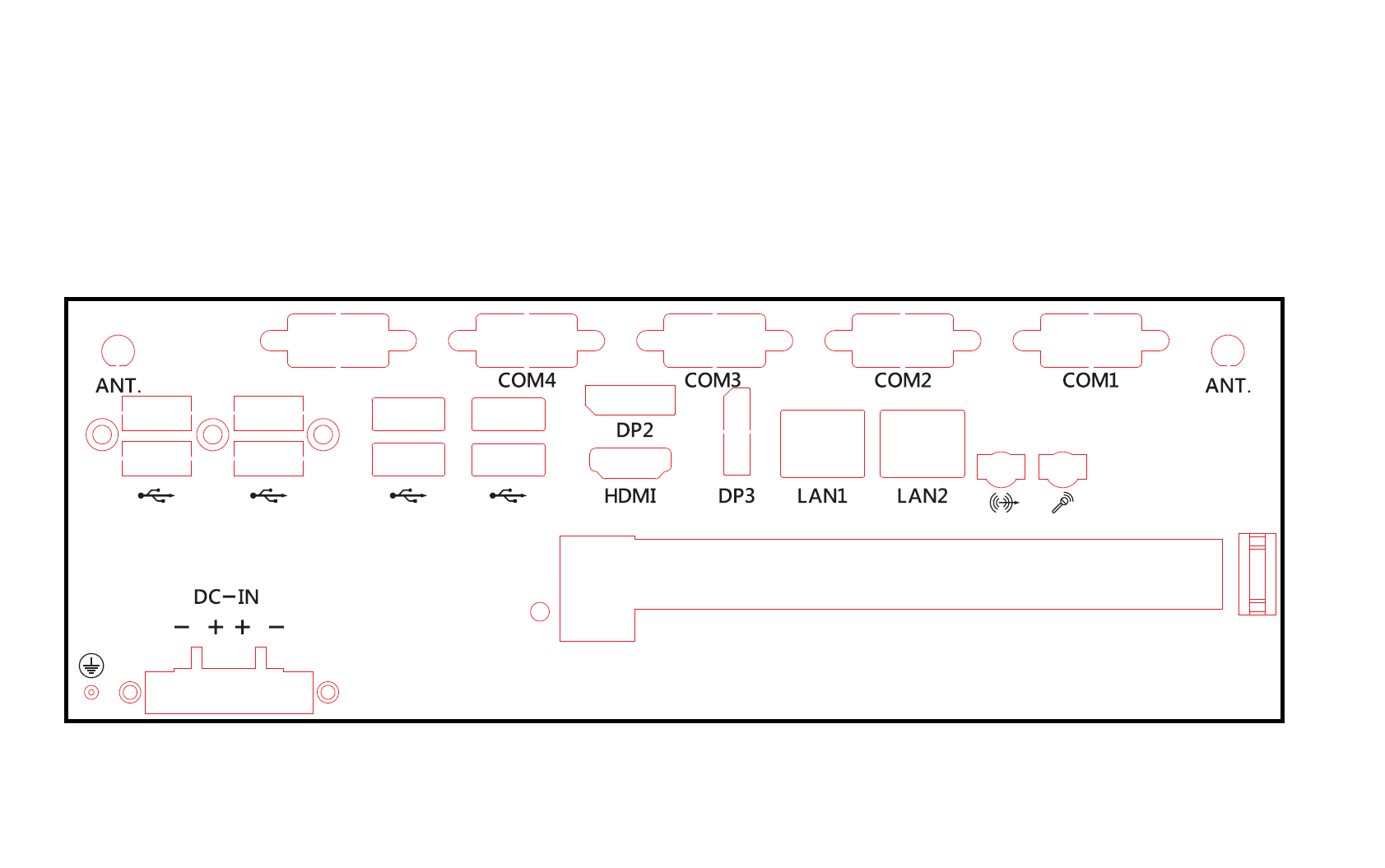

fanlessboxpc AIS-3023 Intel 10th Comet Lake-S H420E

AIS-3023 Intel 10th Comet Lake-S H420E

Mini-ITX Fanless Box PC w/ Intel 10th Core i9/i7/i5/i3 CPU ( Comet Lake-S)

2x SO-DIMM, 2-Channel DDR4 2933MHz, up to 64GB system memory

HDMI/DP, 2LAN, 2USB3, 6USB2, 4COM, DC-IN +12V

One PCIex16 slot for expansion

AIS-3023-9E: i9-10900TE, HDMI/DP, 2LAN, 4COM, 2USB3/6USB2, PCIex16

AIS-3023-7E: i7-10700TE, HDMI/DP, 2LAN, 4COM, 2USB3/6USB2, PCIex16

AIS-3023-5E: i5-10500TE, HDMI/DP, 2LAN, 4COM, 2USB3/6USB2, PCIex16

AIS-3023-3E: i3-10100TE, HDMI/DP, 2LAN, 4COM, 2USB3/6USB2, PCIex16

0°C ~ 50°C harsh operation environment


fanlessboxpc AIS-3023 Intel 10th Comet Lake-S H420E datasheet
